electric heat wire installation mat system
“Incredible product. I will never install a heated floor again without this product. Fast, simple, and most important, produces a nice FLAT surface for installing stone floors or tile. I highly recommend it!”
Jerry Burch
Sound Tile & Stone—Gig Harbor, WA
Watch a Video Introduction to RPM Mats:
RPM-V1 Vented

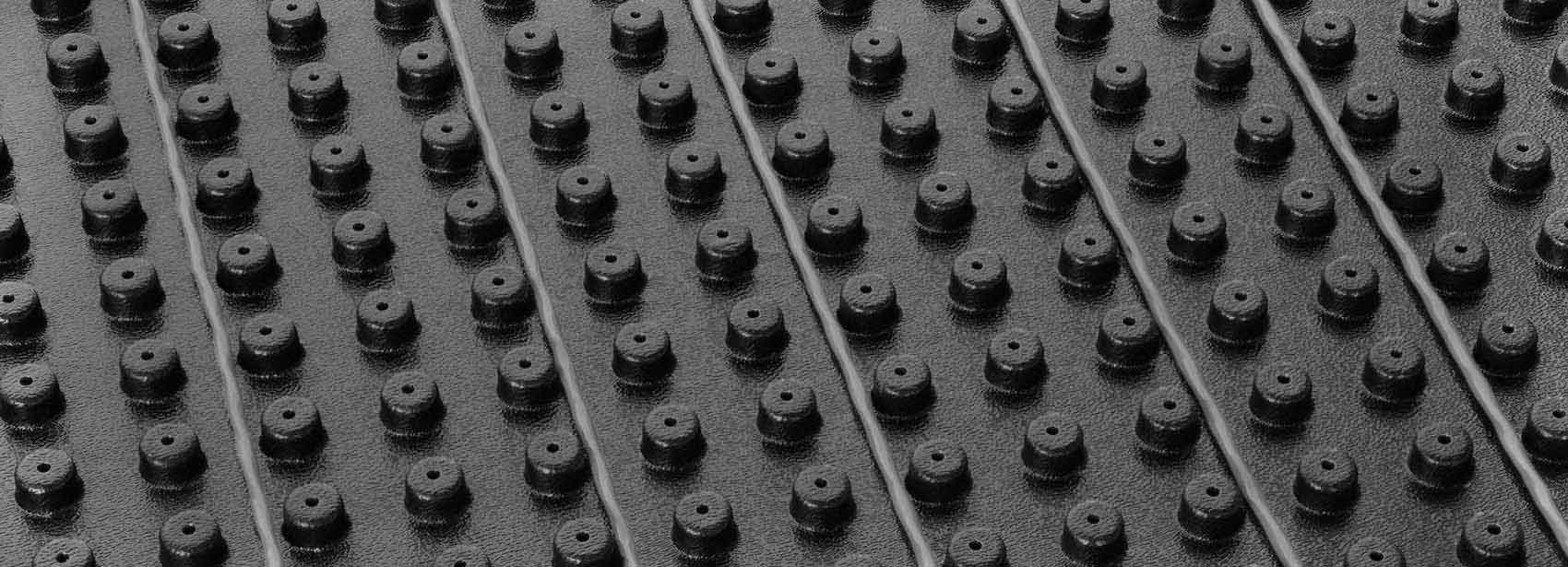

The already easy to install RPM is even easier with the RPM-V1 (5/16″ height). This model of RPM Mat has a vented design which allows air to reach the vinyl adhesive below, across the entire area of the mat, by incorporating a small hole thru the top of every stud. This venting allows the RPM-V1 to breathe which accelerates the dry time of the adhesive.
One benefit of this design offers the user the ability to install the RPM over a wood substrate without having to use staples. Another benefit and biggest cost savings of the RPM-V1 is it allows the mat to be installed over concrete using the same inexpensive vinyl adhesive currently recommended for the installation over wood. Patented.
The RPM-330 (5/16″ height) and RPM-500 (1/2″ height) are still available for users who prefer to mechanically fasten the RPM with staples.
RPM Installation
Ask a question
[form-contact-us]
Useful Downloads
- RPM Mats 25yr Warranty (91.44 KB)
- RPM Mats Brochure (4.99 MB)
- Material & Equipment Recommendations (284.07 KB)
RPM-330 See How Easy It Is To Use
RPM Mats (Radiant Positioning Mats) are “The Original” heat wire installation mat system. Since 2006 they have been used as a backerboard replacing, anti-fracture membrane, designed specifically to ease the installation process for all brands of electric in-floor heat wire.
The unique stud placement and design allows for wire spacing at any 1/2″ increment, all while protecting the wire, during and after installation. Other benefits include; a thinner installation, easy cement leveling over wire, makes wire layout adjustments fast and easy, lightweight and cuts with no dust, rated tough enough for automobile showrooms and shopping malls, multiple flooring options other than tile can be used on top, made in the USA from 80-90% recycled materials, available in 5/16″ and 1/2″ thickness.
Check out the RPM-V1, featuring a vented design that rapidly accelerates the dry time of the adhesive, while offering the same benefits as the original RPM.
What Our Customers Are Saying
This product has saved me and my crew time and energy. It is very efficient. I use it all the time and the customers are very impressed by the way it goes down and the fact it keeps the wires out of the way from any damage. I have been using the RPM mats since they first came out. It really makes a difference.
DO NOT install a radiant wire heat system without using RPM mats! I can not overstate how easy the mats made stringing the wires. I had to pull up and re-string the wire 3 times before getting the spacing just right. It would have been virtually impossible if I had stuck with the metal straps sent with my heating wire. In addition it would have been more than likely that I would have damaged the wire. The RPM mats are worth every penny. Oh, their tech support was phenomenal. One of the guys even called me back after answering my question because he had thought of something else to tell me. A thousand thanks.
David Sabbagh
Homeowner—Berkley, MI
Latest from Our Blog
5 Reasons You Should Install A Radiant Heating System In Your Home
Radiant heated floors are a great way to keep your home warm this winter. But they have other benefits as well. Here are five reasons why you should consider radiant heating for your home.
Read More »Selecting an Installation Location for Your In-Floor Heating System
Previously, we discussed the importance of properly installing heating floor mats to ensure functionality and warranty coverage. But another important step in successfully installing an in-floor heating system is selecting its actual location. While this might sound simple, there are two key factors that must be considered: accessibility and warranty requirements.
Read More »
